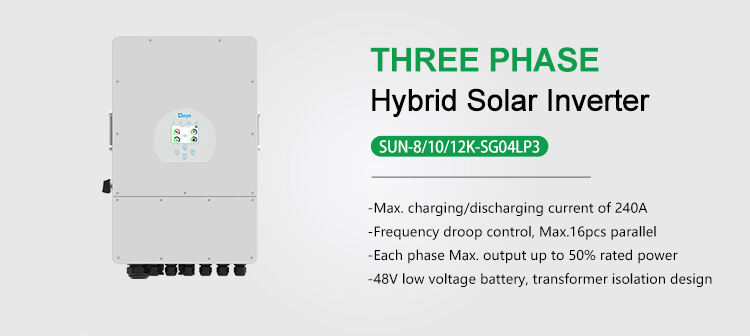

Product Description
Model |
SUN-8K-SG04LP3 |
SUN-10K-SG04LP3 |
SUN-12K-SG04LP3 |
|||
Battery Input Data |
||||||
Battery Type |
Lead-acid or Li-lon |
|||||
Battery Voltage Range (V) |
40~60V |
|||||
Max. Charging Current (A) |
190A |
210A |
240A |
|||
Max. Discharging Current (A) |
190A |
210A |
240A |
|||
Charging Curve |
3 Stages / Equalization |
|||||
External Temperature Sensor |
Optional |
|||||
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
|||||
PV String Input Data |
||||||
Max. DC Input Power (W) |
10400W |
13000W |
15600W |
|||
Rated PV Input Voltage (V) |
550V (150V~800V) |
|||||
MPPT Range (V) |
200V-650V |
|||||
Start-up Voltage (V) |
160V |
|||||
Full Load DC Voltage Range |
350-650 |
|||||
PV Input Current (A) |
13+13 |
26+13 |
||||
No. of MPPT Trackers |
2 |
|||||
No. of Strings Per MPPT Tracker |
1+1 |
2+1 |
||||
AC Output Data |
||||||
Rated AC Output and UPS Power (W) |
8000W |
10000W |
12000W |
|||
Max. AC Output Power (W) |
8800W |
11000W |
12000W |
|||
Peak Power (off grid) |
2 times of rated power, 10 S |
|||||
AC Output Rated Current (A) |
12A |
15A |
18A |
|||
Max. AC Current (A) |
18A |
23A |
27A |
|||
Max. Continuous AC Pass-through (A) |
50A |
|||||
Output Frequency and Voltage |
50/60Hz; 230/400Vac (Three phase) |
|||||
Grid Type |
Current Harmonic Distortion |
|||||
Current Harmonic Distortion |
THD<3%>
|
|||||
Efficiency |
||||||
Max. Efficiency |
97.60% |
|||||
Euro Efficiency |
97.00% |
|||||
MPPT Efficiency |
99.90% |
|||||
Protection |
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage
Protection
|
|||||
Surge protection |
DC Type II / AC Type II |
|||||
Certifications and Standards |
||||||
Grid Regulation |
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 |
|||||
Safety EMC / Standard |
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 |
|||||
General Data |
||||||
Operating Temperature Range (℃ ) |
-25~60℃ , >45℃ Derating |
|||||
Cooling |
Smart cooling |
|||||
Noise (dB) |
<30 db="">
|
|||||
Communication with BMS |
RS485; CAN |
|||||
Weight (kg) |
36.8 |
|||||
Size (mm) |
422W×658H×281D |
|||||
Protection Degree |
IP65 |
|||||
Installation Style |
Wall-mounted |
|||||
Warranty |
5 years |
|||||
1.Deye Hybrid Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy, Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2. Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard Wi-Fi communication
6.Deye Solar inverters are equipped with 25-year data storage capability (Internal SD Card)
