DEYE Hybrid ACDC Solar Air Conditioner Specification T3 | ||||||||
Model | Unit | 12000btu | 18000btu | 24000btu | ||||
DGWG2-ACDC-12K | DGWGV-ACDC-18K | DGWGV-ACDC-24K | ||||||
Climate Type | Tropical | T3/T1 | ||||||
Application area | m2 | 12-20 | 20-30 | 30-42 | ||||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | |||||
DC Power (PV in Series) | V | 80-380V | ||||||
DC Power Current | A | |||||||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||||
Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |||
Power input(T1) | BUT | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||||
Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||||
Capacity(T3) | W | 2910 | 4290 | 5130 | ||||
BTU | 9900 | 14700 | 17500 | |||||
Power input(T3) | W | 1050 | 1630 | 1940 | ||||
Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | |||
BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | |||||
Power input | W | 1170(190-1700) | 1770(220-2500) | 1770(300-3500) | ||||

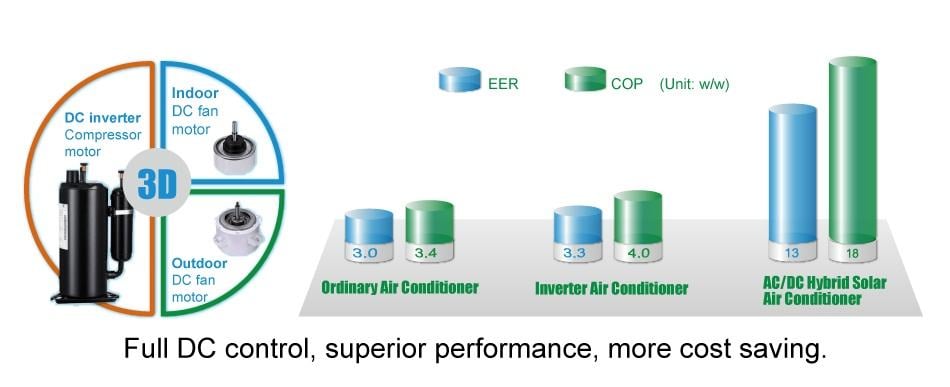

T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||||
T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | |||||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.45/11.75 | ||||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||||

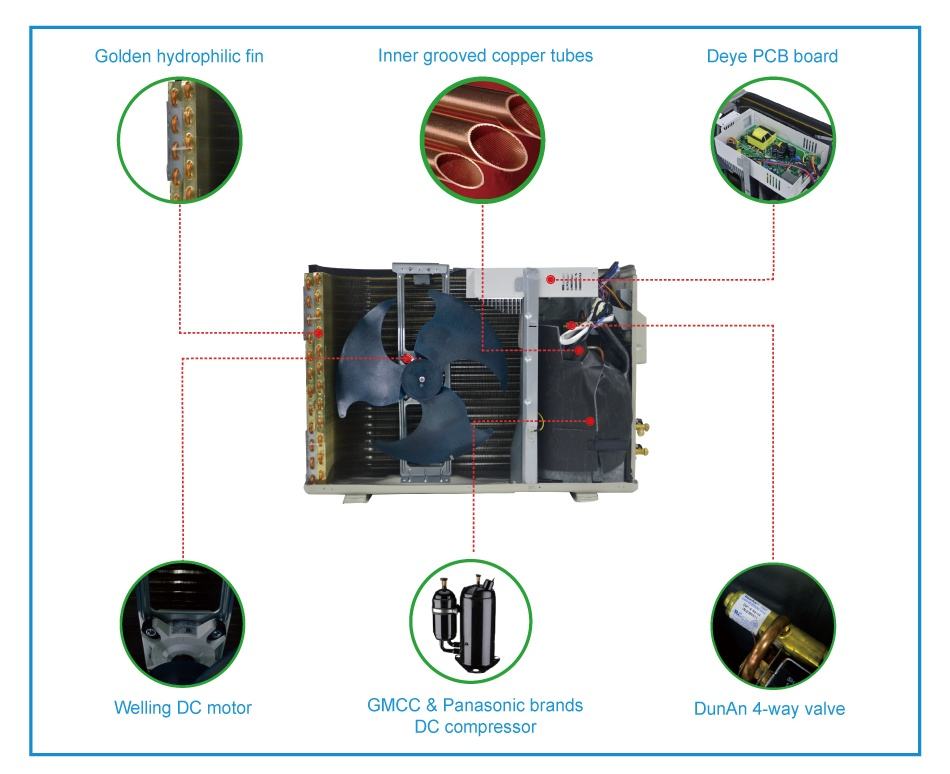

Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 | |||
Model | / | 2xRotary Inverter | ||||||
Model | / | Highly | Panasonic | |||||
Indoor fan motor | Model | / | BLDC-15W | BLDC-45W | ||||
Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | ||||
Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 540/485/435/350 | 1290/1180/1070/900 | ||||
Indoor noise level (Turbo) | m3/h | ≤42.5 | ≤46 | ≤50 | ||||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | ||||
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | |||||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | |||||
Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W | |||
Speed | r/min | 880 | 850 | |||||
Outdoor air flow | m3/h | 2100 | 2200 | 3500 | ||||
Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | ||||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×32 | 802×564×323 | 910×622×405 | |||
Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||||
Refrigerant type | / | R410A | ||||||
Max Design pressure | MPa | 4.3/1.5 | ||||||
Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | |||||
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||||
Max. difference in level | m | 8 | 10 | |||||
Drain pipe size | mm | 16 | ||||||
Refrigerant connction copper pipe length | m | 3 | 4 | |||||
Connection wire length | m | 4 | 5 | |||||
Electronic Expansion Valve | / | Yes | ||||||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||||

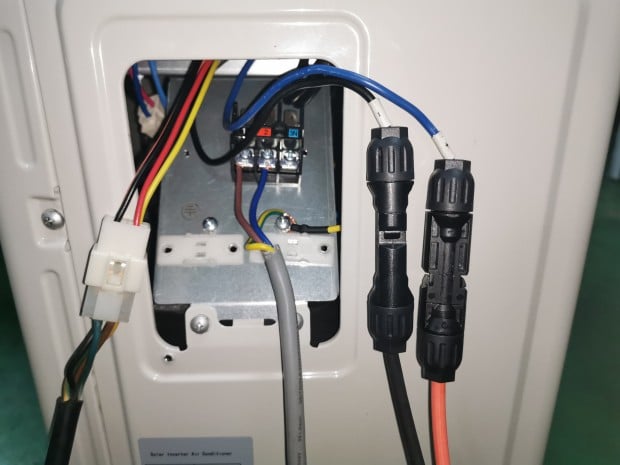

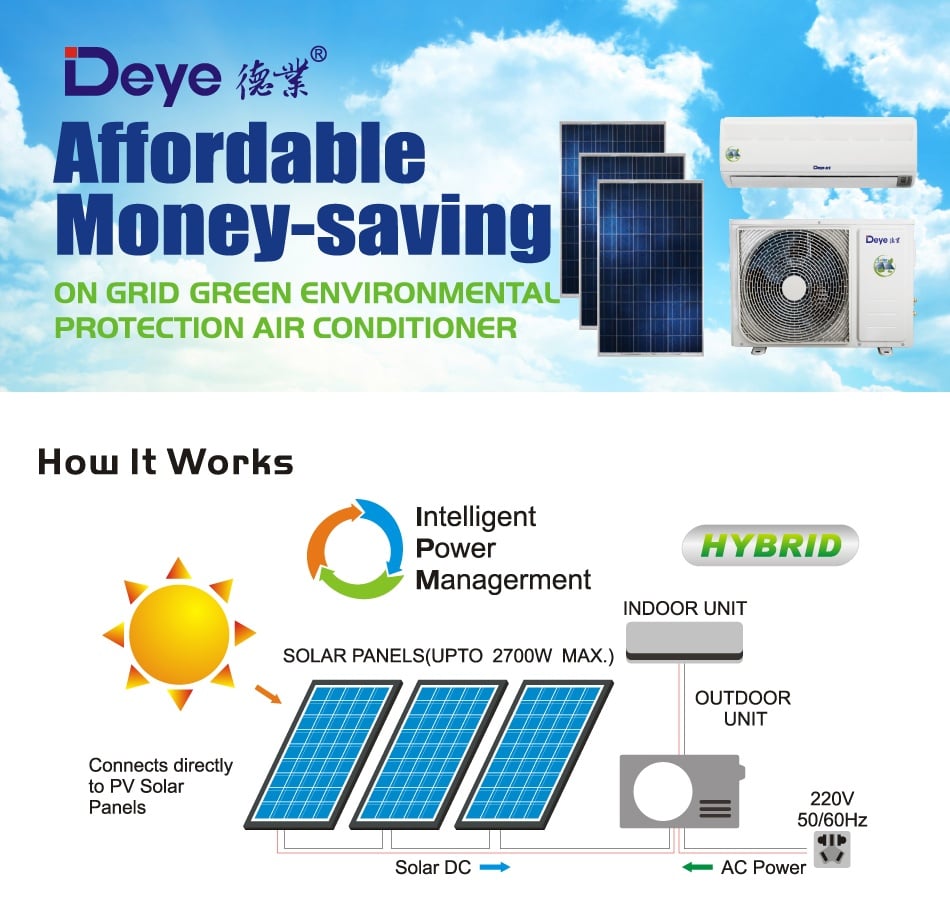

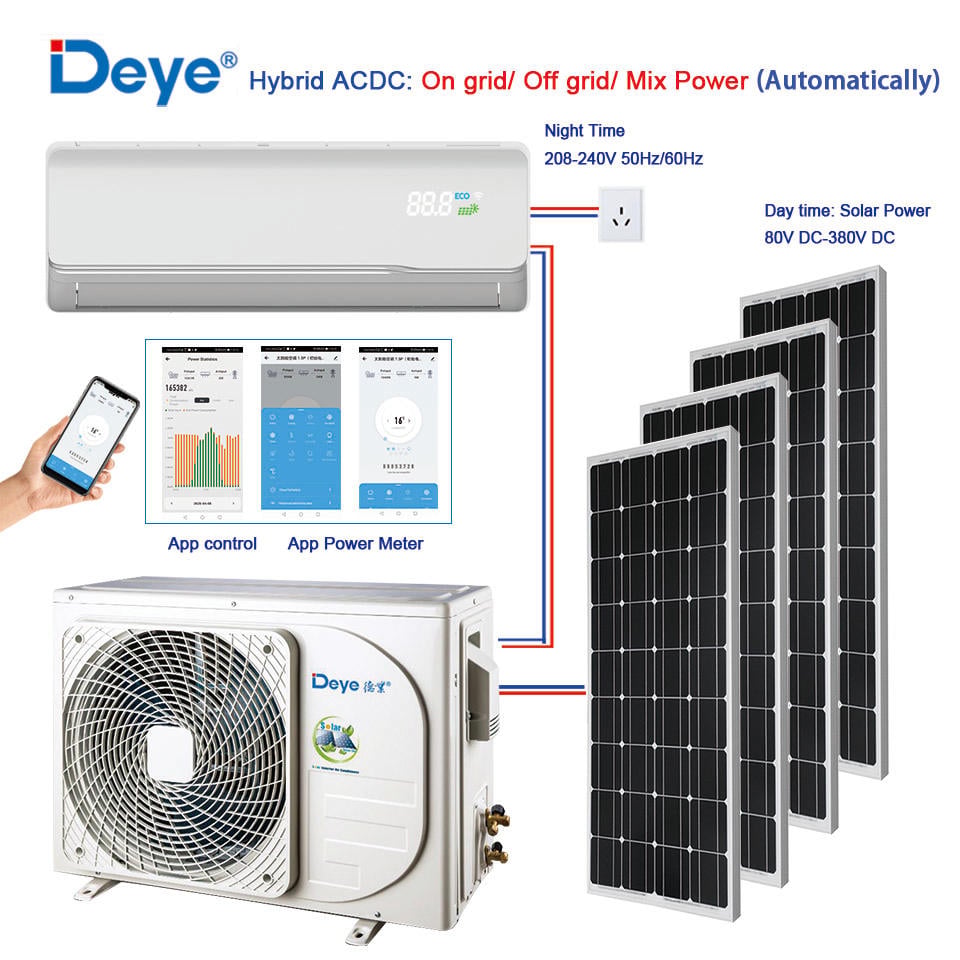

1. MC4 connect to solar panel
2. Power cable connect to Grid
3. Indoor and outdoor unit connection1.PCB controller integrated
2.No need solar inverter
3.No need battery
1.PCB and controller designed and produced by Deye.
2.Hardware and soft ware both can be upgrade based on different market standard
