Description

About LONGi

Picture of Longi Xi'an Headquarters

Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.

Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.

LONGi Authorizes SOLARMAN's Certificate

LONGi × SOLARMAN

Product Description

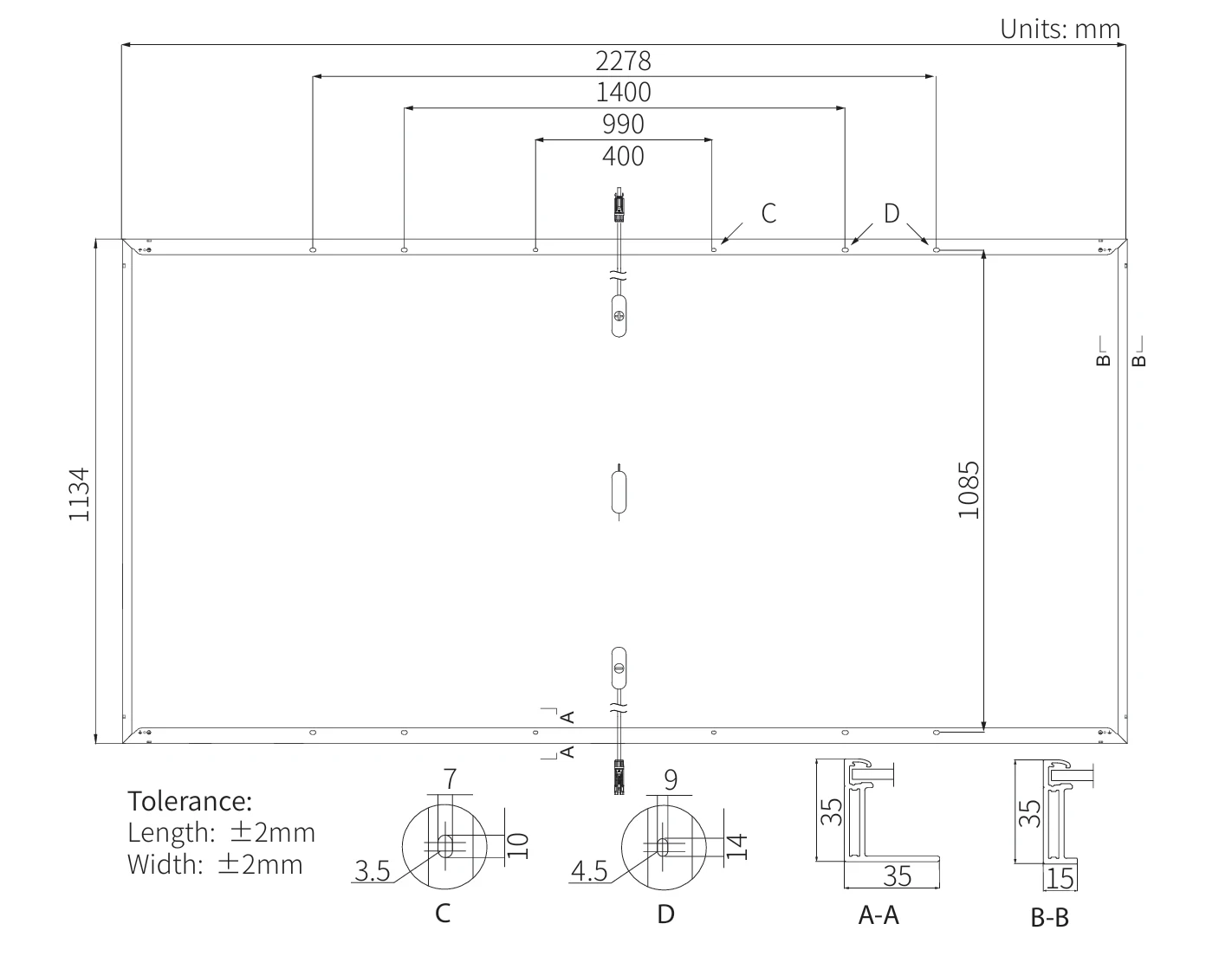

Mechanical Parameters
Cell Orientation	144（6*24）
Junction Box	IP68
Output Cable	4mm², +400,-200mm/±1400mm,lenght can be customized
Glass	Single glass,3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	27.5Kg
Dimension	2278X1134X35mm
Packaging	31 pcs./pallet 155 pcs./20GP 620 pcs./40HC

Electrical Performance Parameters (STC Test)

Module model	LR5-72HTH-565M	LR5-72HTH-570M	LR5-72HTH-575M	LR5-72HTH-580M	LR5-72HTH-585M
Maximum power (Pmax/W)	565	570	575	580	585
Open circuit voltage (Voc/V)	51.76	51.91	52.06	52.21	52.36
Short circuit current (Isc/A)	14.01	14.07	14.14	14.20	14.27
Voltage at Maximum Power (Vmp/V)	43.61	43.76	43.91	44.06	44.21
Current at Maximum Power (Imp/A)	12.96	13.03	13.10	13.17	13.24
Module efficiency(%)	21.9	22.1	22.3	22.5	22.6

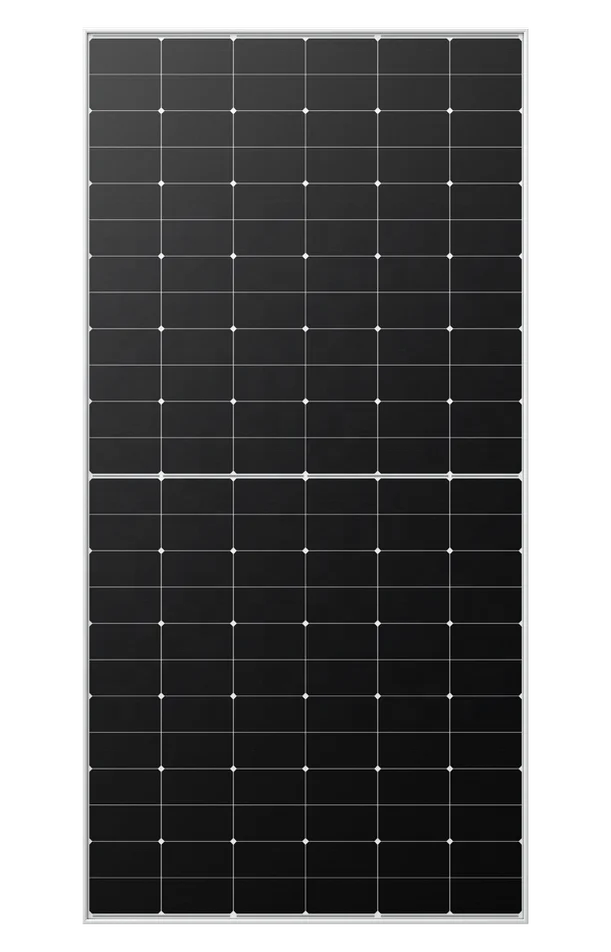

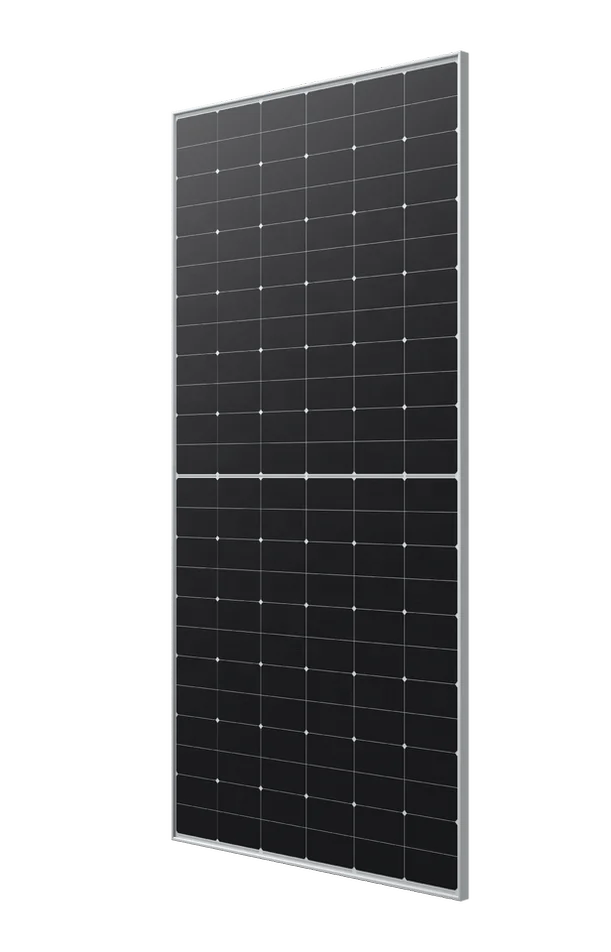

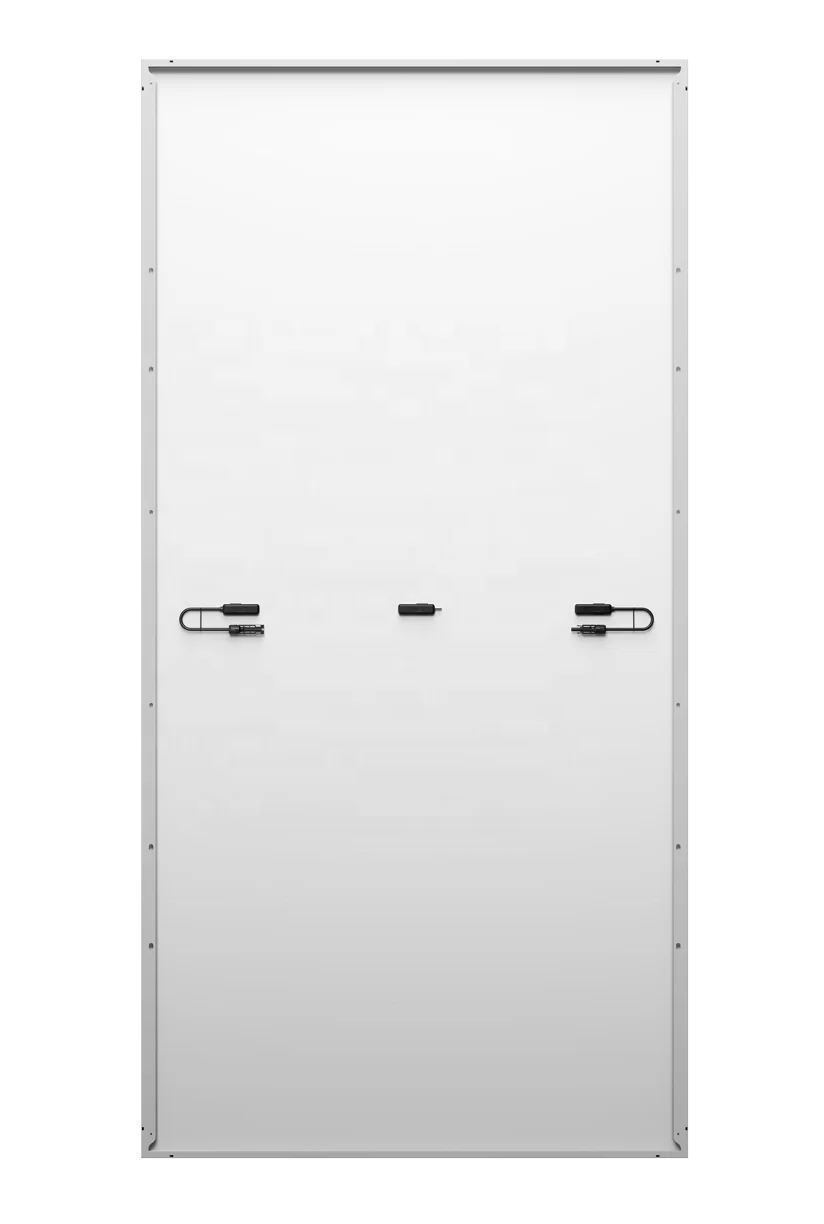

Product image

Packaging and container loading

Projects cases

Longi Factory Roof Solar Power Station（see above）

Longi Ground Solar Power Station（See below）
