Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.

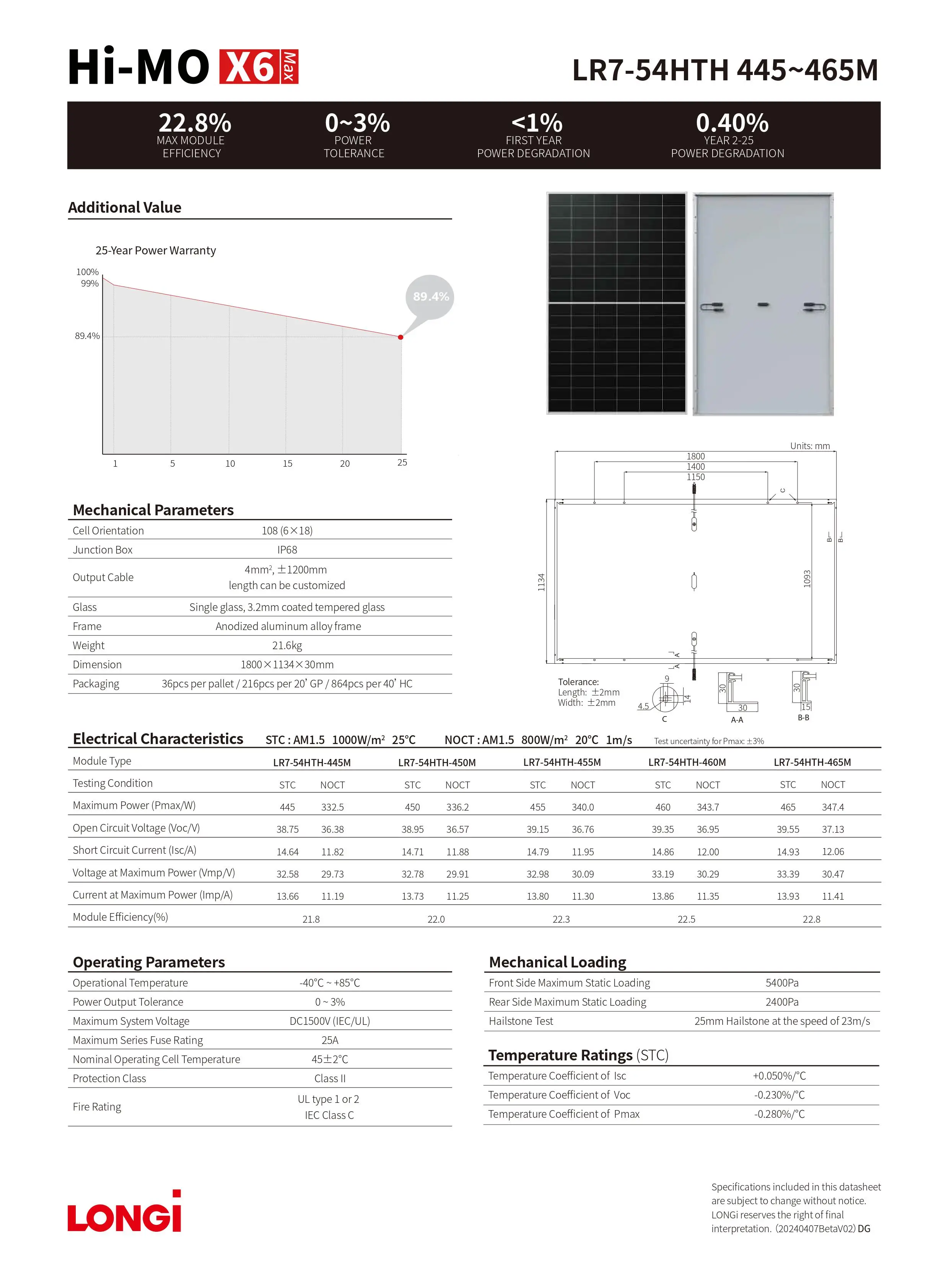

Mechanical Parameters |
||||||||||
Cell Orientation |
108 (6×18) |
|||||||||
Junction Box |
IP68 |
|||||||||
Output Cable |
4mm2, ±1200mm length can be customized |
|||||||||
Glass |
Single glass, 3.2mm coated tempered glass |
|||||||||
Frame |
Anodized aluminum alloy frame |
|||||||||
Weight |
21.6kg |
|||||||||
Dimension |
1800×1134×30mm |
|||||||||
Packaging |
36pcs per pallet / 216pcs per 20’GP / 864pcs per 40’HC |
|||||||||
Electrical Characteristics |
STC : AM1.5 1000W/m2 25℃ |
|||||||||
Module Type |
LR7-54HTH-445M |
LR7-54HTH-450M |
LR7-54HTH-455M |
LR7-54HTH-460M |
LR7-54HTH-465M |
|||||
Maximum Power (Pmax/W) |
445 |
450 |
455 |
460 |
465 |
|||||
Open Circuit Voltage (Voc/V) |
38.75 |
38.95 |
39.15 |
39.35 |
39.55 |
|||||
Short Circuit Current (Isc/A) |
14.64 |
14.71 |
14.79 |
14.86 |
14.93 |
|||||
Voltage at Maximum Power (Vmp/V) |
32.58 |
32.78 |
32.98 |
33.19 |
33.39 |
|||||
Current at Maximum Power (Imp/A) |
13.66 |
13.73 |
13.80 |
13.86 |
13.93 |
|||||
Module Efficiency(%) |
21.8 |
22.0 |
22.3 |
22.5 |
22.8 |
|||||
Operating Parameters |
||||||||||
Operational Temperature |
-40℃ ~ +85℃ |
|||||||||
Power Output Tolerance |
0 ~ 3% |
|||||||||
Maximum System Voltage |
DC1500V (IEC/UL) |
|||||||||
Maximum Series Fuse Rating |
25A |
|||||||||
Nominal Operating Cell Temperature |
45±2℃ |
|||||||||
Protection Class |
Class II |
|||||||||
Fire Rating |
UL type 1 or 2 IEC Class C |
|||||||||
Mechanical Loading |
||||||||||
Front Side Maximum Static Loading |
5400Pa |
|||||||||
Rear Side Maximum Static Loading |
2400Pa |
|||||||||
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|||||||||
Temperature Ratings (STC) |
||||||||||
Temperature Coefficient of Isc |
+0.050%/℃ |
|||||||||
Temperature Coefficient of Voc |
-0.230%/℃ |
|||||||||
Temperature Coefficient of Pmax |
-0.280%/℃ |
|||||||||
