Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.
Mechanical Parameters |
||||||||||
Cell Orientation |
144 (6×24) |
|||||||||
Junction Box |
IP68 |
|||||||||
Output Cable |
4mm2, +400, -200mm/±1400mm length can be customized |
|||||||||
Glass |
Single glass, 3.2mm coated tempered glass |
|||||||||
Frame |
Anodized aluminum alloy frame |
|||||||||
Weight |
28.5kg |
|||||||||

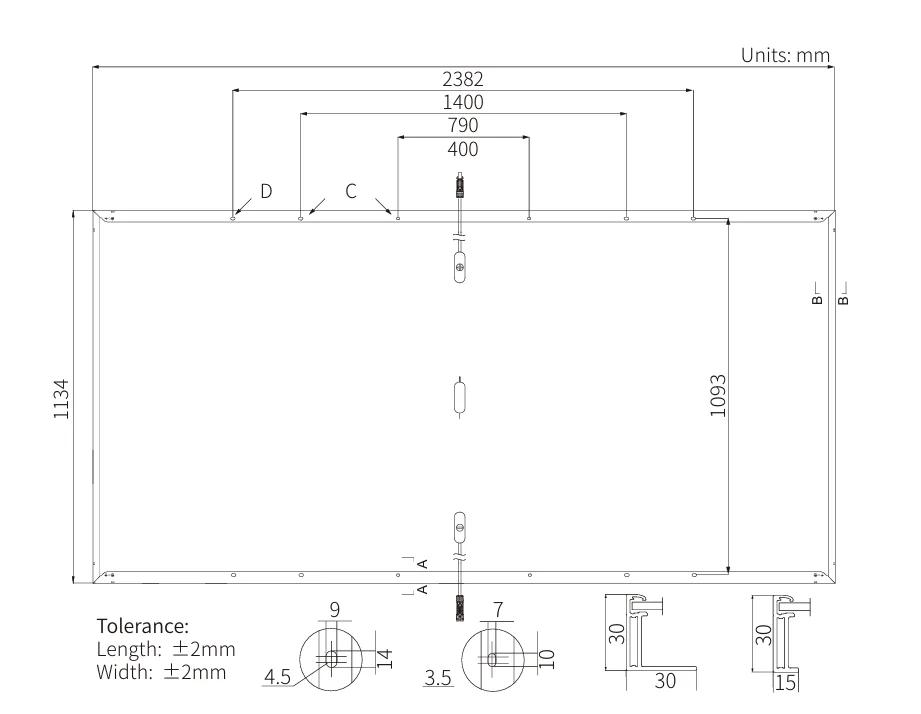

Dimension |
2382×1134×30mm |
|||||||||
Packaging |
36pcs per pallet / 144pcs per 20’GP / 720pcs per 40’HC |
|||||||||
Electrical Characteristics |
STC : AM1.5 1000W/m2 25℃ |
|||||||||
Module Type |
LR7-72HTH-600M |
LR7-72HTH-605M |
LR7-72HTH-610M |
LR7-72HTH-615M |
LR7-72HTH-620M |
|||||
Maximum Power (Pmax/W) |
600 |
605 |
610 |
615 |
620 |
|||||
Open Circuit Voltage (Voc/V) |
52.12 |
52.27 |
52.42 |
52.57 |
52.72 |
|||||
Short Circuit Current (Isc/A) |
14.68 |
14.74 |
14.80 |
14.87 |
14.93 |
|||||
Voltage at Maximum Power (Vmp/V) |
43.88 |
44.03 |
44.18 |
44.33 |
44.48 |
|||||
Current at Maximum Power (Imp/A) |
13.68 |
13.75 |
13.81 |
13.88 |
13.94 |
|||||
Module Efficiency(%) |
22.2 |
22.4 |
22.6 |
22.8 |
23.0 |
|||||
Operating Parameters |
||||||||||
Operational Temperature |
-40℃ ~ +85℃ |
|||||||||
Power Output Tolerance |
0 ~ 3% |
|||||||||
Maximum System Voltage |
DC1500V (IEC/UL) |
|||||||||
Maximum Series Fuse Rating |
25A |
|||||||||
Nominal Operating Cell Temperature |
45±2℃ |
|||||||||
Protection Class |
Class II |
|||||||||
Fire Rating |
IEC Class C |
|||||||||
Mechanical Loading |
||||||||||
Front Side Maximum Static Loading |
5400Pa |
|||||||||
Rear Side Maximum Static Loading |
2400Pa |
|||||||||
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|||||||||
Temperature Ratings (STC) |
||||||||||
Temperature Coefficient of Isc |
+0.050%/℃ |
|||||||||
Temperature Coefficient of Voc |
-0.230%/℃ |
|||||||||
Temperature Coefficient of Pmax |
-0.280%/℃ |
|||||||||
