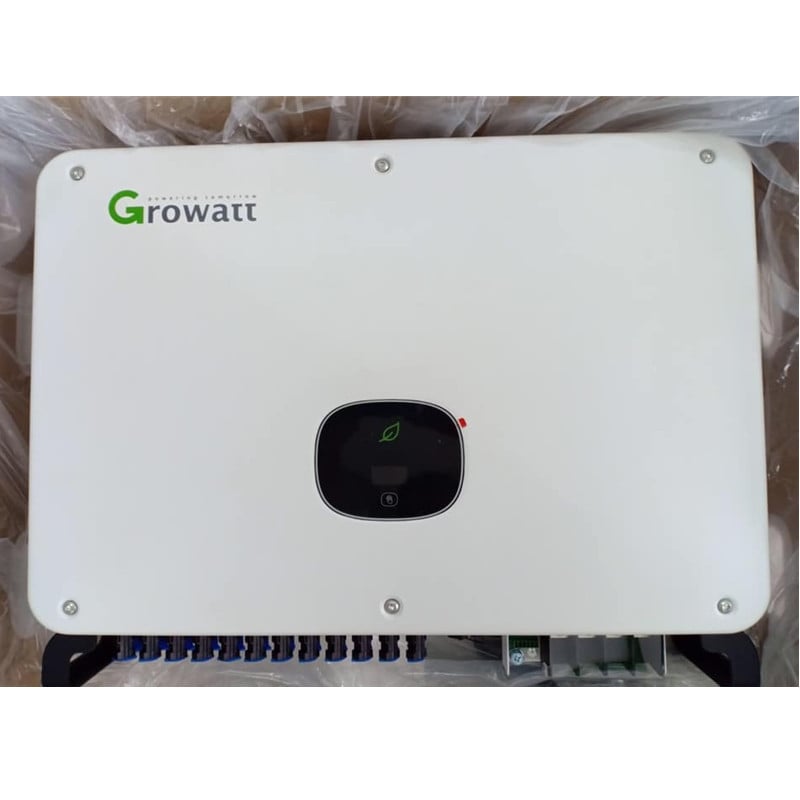

Product Description
Datasheet | ||||
Model Name | MAC 50KTL3-X LV | MAC 60KTL3-X LV | MAC 66KTL3-X MV | MAC 70KTL3-X MV |
Input AC | ||||
Recommended max. PV power | 50KW | 60kW | 66kW | 70kW |
Max. input voltage | 1100V | |||
Rated voltage | 600V | |||
Start-up voltage | 250V | |||
MPPT voltage range | 200V-1000V | |||
Max. input current | 52A | |||
Max. short circuit current | 32A | |||
MPPT number/Max. input strings number | 3/4+3+3 | 3/4+4+4 | 3/4+3+3 | 3/4+3+3 |
Output AC | ||||
Rated output power | 50kW | 60kW | 66kW | 70kW |
Max. apparent output power | 3.3kVA | 36.6kVA | 39.6kVA | 44kVA |
Rated grid voltage | 220V/380V, 230V/400V (340-440V) | |||
Rated grid frequency | 50/60Hz | |||
Max. output current | 80.5A | 96.6A | 88.2A | 93.6A |
Power Factor | 0.8leading 0.8lagging | |||
THDi | <3%<> | |||
Efficiency | ||||
Max. efficiency | 98.8% | |||
EU efficiency | 98.5% | |||
Protection | ||||
DC reverse-polarity protection | Yes | |||
Short circuit protection | Yes | |||
Output over current protection | Yes | |||
Surge protection | Yes | |||
Grid monitoring | Yes | |||
Anti-islanding protection | Yes | |||
Temperature protection | Yes | |||
Integrated AFCI (DC arc-fault
circuit protection) | Yes | |||
Integrated DC switch | Optional | |||
General Data | ||||
Dimensions (W*H*D) | 680/508/281mm | |||
Weight | 52kg | |||
Topology | Transformer less | |||
Self-consumption | <1w> | |||
Operating ambient temperature range | -25 ~ +60°C | |||
Relative humidity | 0-100% | |||
Ingress protection | IP65 | |||
Cooling concept | Natural convection | |||
Max. operation altitude | 4000m | |||
Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4 | |||
Features | ||||
DC connection | H4/MC4(Optional) | |||
AC connection | Cable gland + OT terminal | |||
Display | OLED+LED/WIFI+APP | |||
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2016, sell to Western Europe (15.00%), Oceania (10.00%), Northern Europe (10.00%), Mid East (10.00%), Eastern Europe (10.00%), South America (10.00%), Domestic Market (5.00%), South Asia (5.00%), Africa (5.00%), Central America (5.00%), North America (5.00%), Eastern Asia (5.00%), Southeast Asia (5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Solar panel, solar inverter, solar energy system
4. Why should you buy from us not from other suppliers?
1. 12 years product warranty and 30 years power output warranty;
2. Over 30 years’ experience OEM and ODM supported;
3. Competitive price & super reliable quality;
4. Positive power tolerance: 0~+5w;
5. Waterproof, fireproof, salt & mist resistance;
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU；
Accepted Payment Currency: USD, EUR, and CNY;
Accepted Payment Type: T/T, L/C, PayPal, Western Union, and Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
