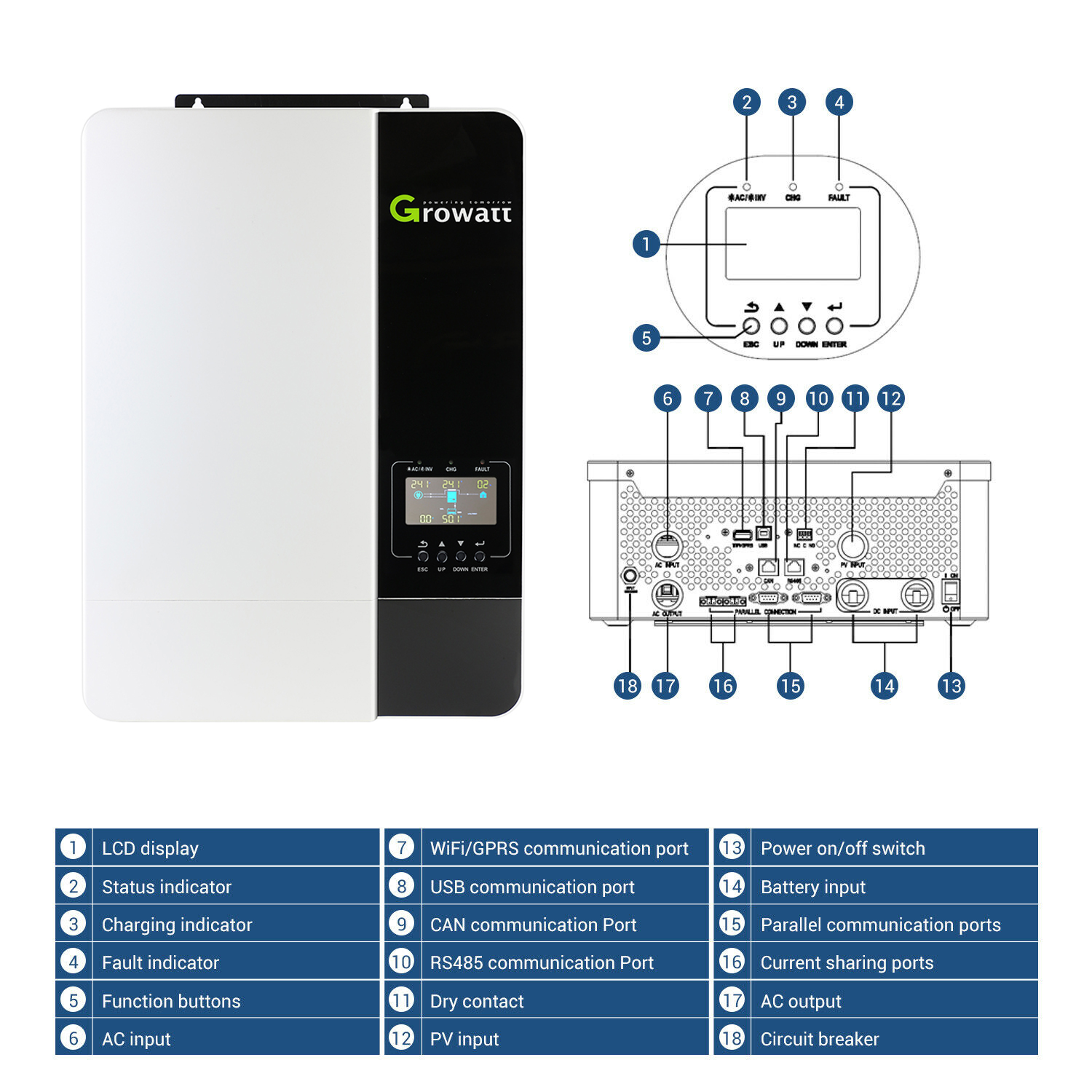

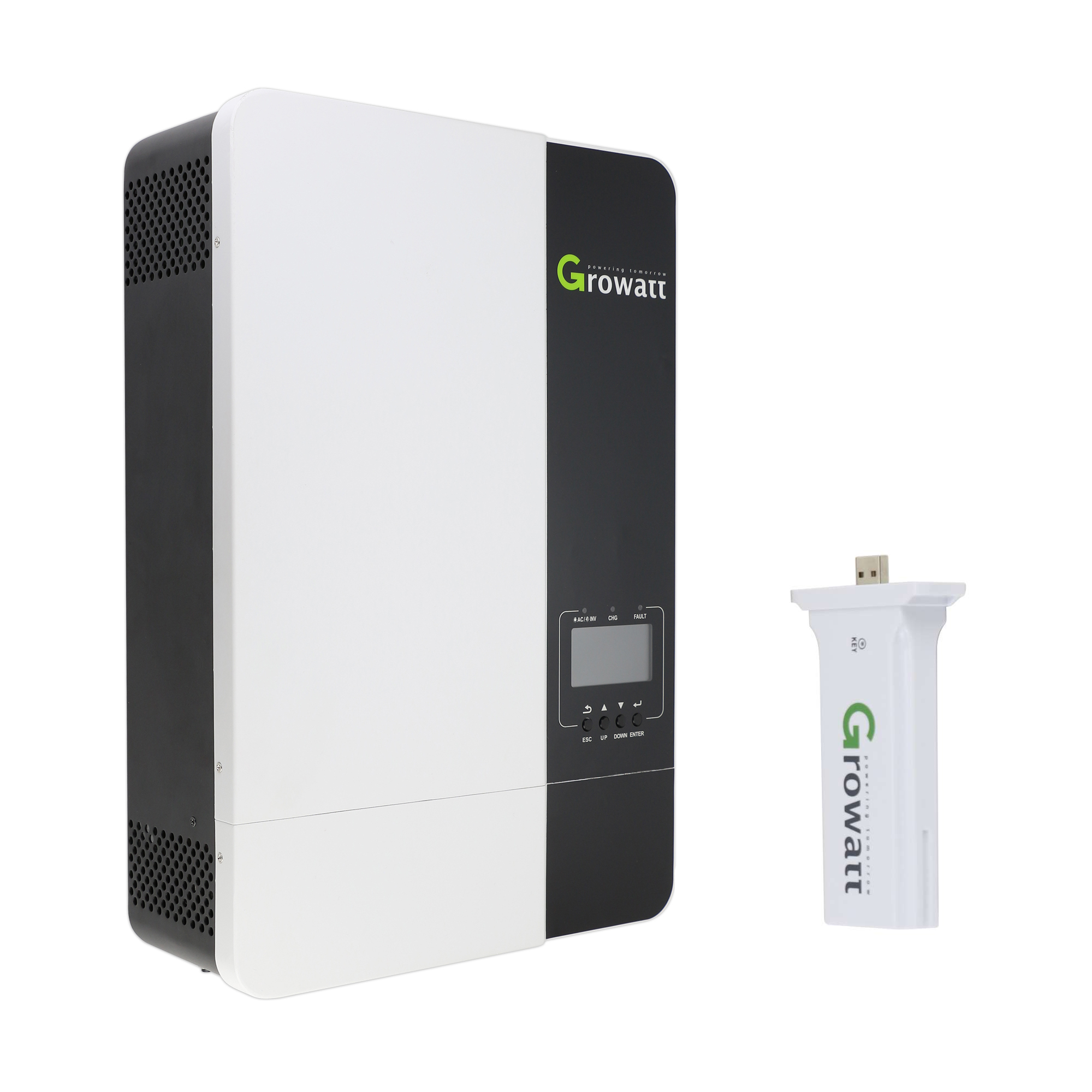

Product Description
1. LCD display |
2. Status indicator |
3. Charging indicator |
4. Fault indicator |
5. Function buttons |

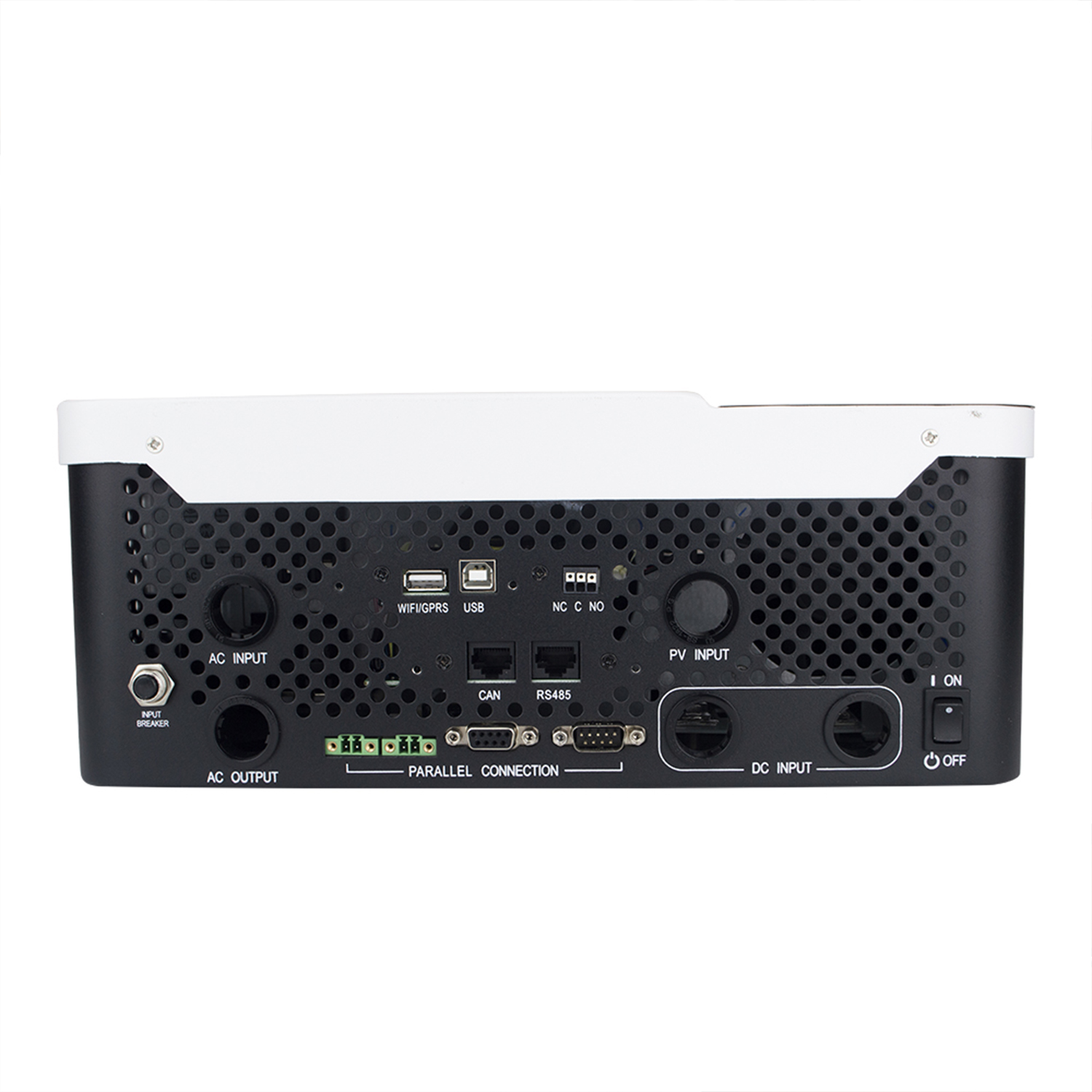

6. AC input |
7. WiFi/GPRS communication port |
8. USB communication port |
9. BMS communication port (support CAN/RS485 protocol) |
10. RS485 communication port(for expansion) |
11. Dry contact |
12. PV input |
13. Power on/off switch |
14. Battery input |
15. Parallel communication ports |
16.Current sharing ports |
17. AC output |
18. Circuit breaker |
Datasheet | ||||
Model Name |
SPF 3500 ES |
MID 33KTL3-X |
SPF 5000 ES |
|
INVERTER OUTPUT | ||||
Recommended max. PV power |
3500VA/ 3500W |
49.5kW |
5000VA/ 5000W |
|

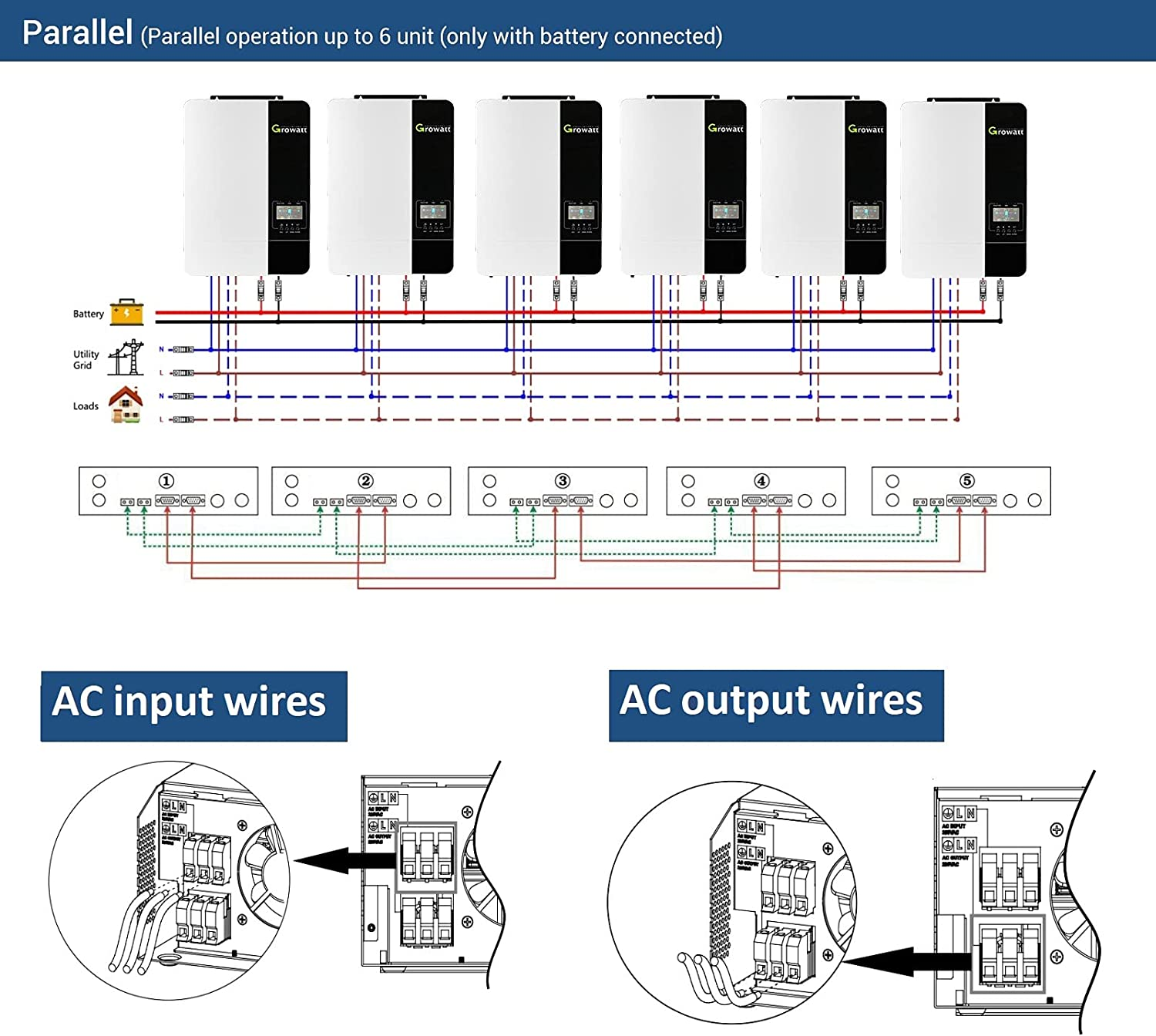

Parallel Capability |
Yes, 6 units maximum |
|||
AC Voltage Regulation |
230VAC ± 5% @ 50/60Hz |
|||
Surge Power |
7000VA |
10000VA |
||
Efficiency (Peak) |
93% |
|||
Waveform |
Pure sine wave |
|||
Transfer Time |
10ms typical, 20ms Max |
|||
SOLAR CHARGER |
||||
Maximum PV Array Power |
4500W |
33kW |
6000W |
|
MPPT Range @ Operating Voltage |
120VDC ~ 430VDC |
|||
Number of Independent MPP Trackers/ Strings Per MPP Tracker |
1/1 |
|||
Maximum PV Array Open Circuit Voltage |
450VDC |
|||
Maximum Solar Charge Current |
80A |
55.5A |
100A |
|
AC CHARGER | ||||
Charge Current |
60A |
80A |
||
AC Input Voltage |
230 VAC |
|||
Frequency Range |
50Hz/60Hz (Auto sensing) |
|||
PHYSICAL | ||||
Protection Degree |
IP20 |
|||
Dimension (W/H/D) |
330/485/135mm |
|||
Net Weight |
12kg |
1. Who are we?
We are a professional manufacturer on Solar Panel with many years’ experience. Our factory and business office located in Wuxi City, Jiangsu Province.
2. What can we provide?
We can provide solar panel, solar inverter, solar energy system.
3. Why choose us?
A. Higher power generation
B. Competitive price
C. High quality standard
D. Customized service
4. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU;
Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
