Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.
Module model |
LR5-72HBD-
545M
|
LR5-72HBD-
550M
|
LR5-72HBD-
555M
|
LR5-72HBD-
560M
|
|||
Maximum power (Pmax/W) |
545 |
550 |
555 |
560 |
|||
Open circuit voltage (Voc/V) |
49.65 |
49.80 |
49.95 |
50.10 |
|||
Short circuit current (Isc/A) |
13.92 |
13.99 |
14.05 |
14.10 |
|||
Peak power voltage (Vmp/V) |
41.80 |
41.95 |
42.10 |
42.25 |
|||
Peak power current (Imp/A) |
13.04 |
13.12 |
13.19 |
13.26 |
|||
Module efficiency(%) |
21.1 |
21.3 |
21.5 |
21.7 |
|||
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||||

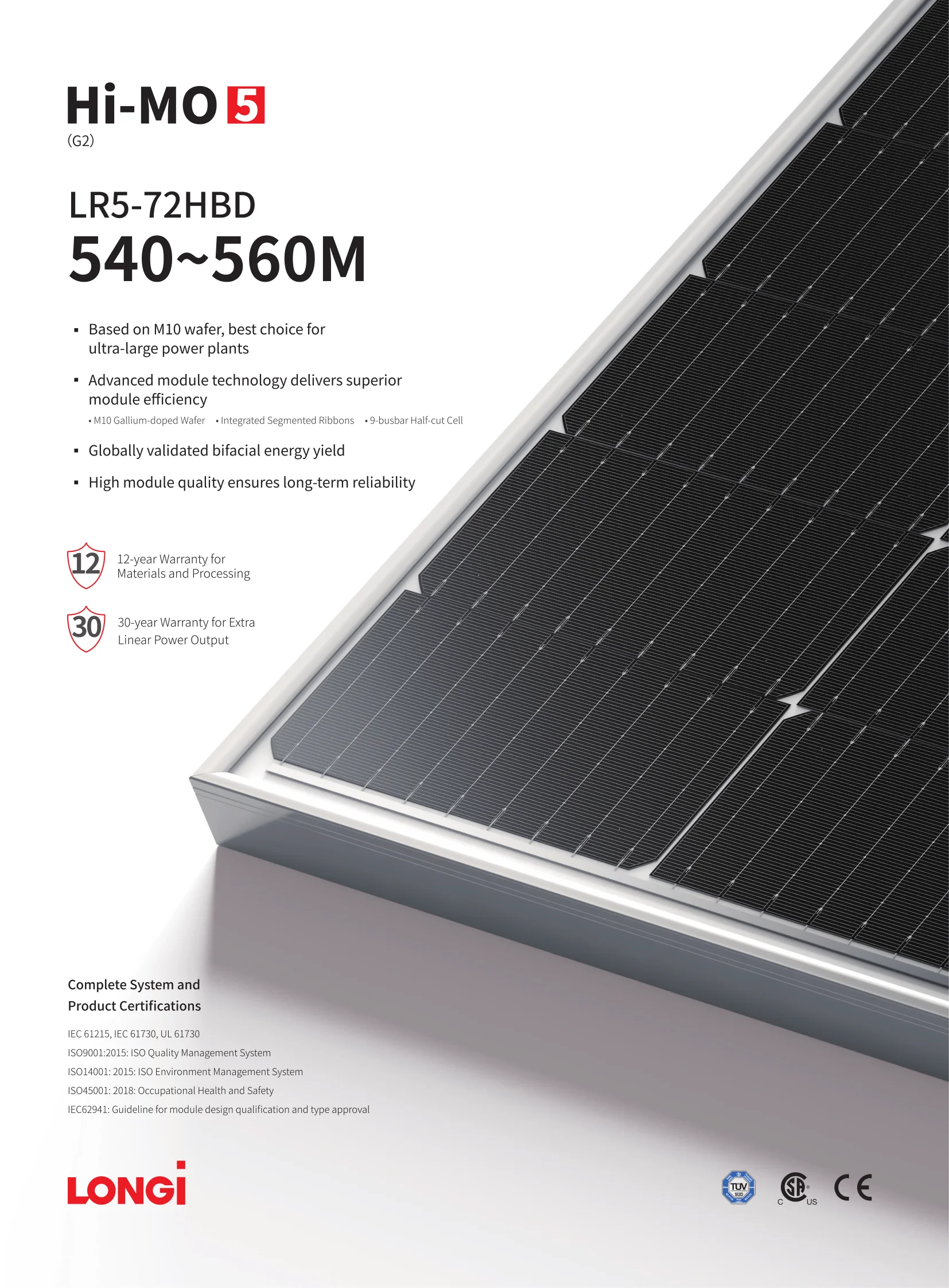

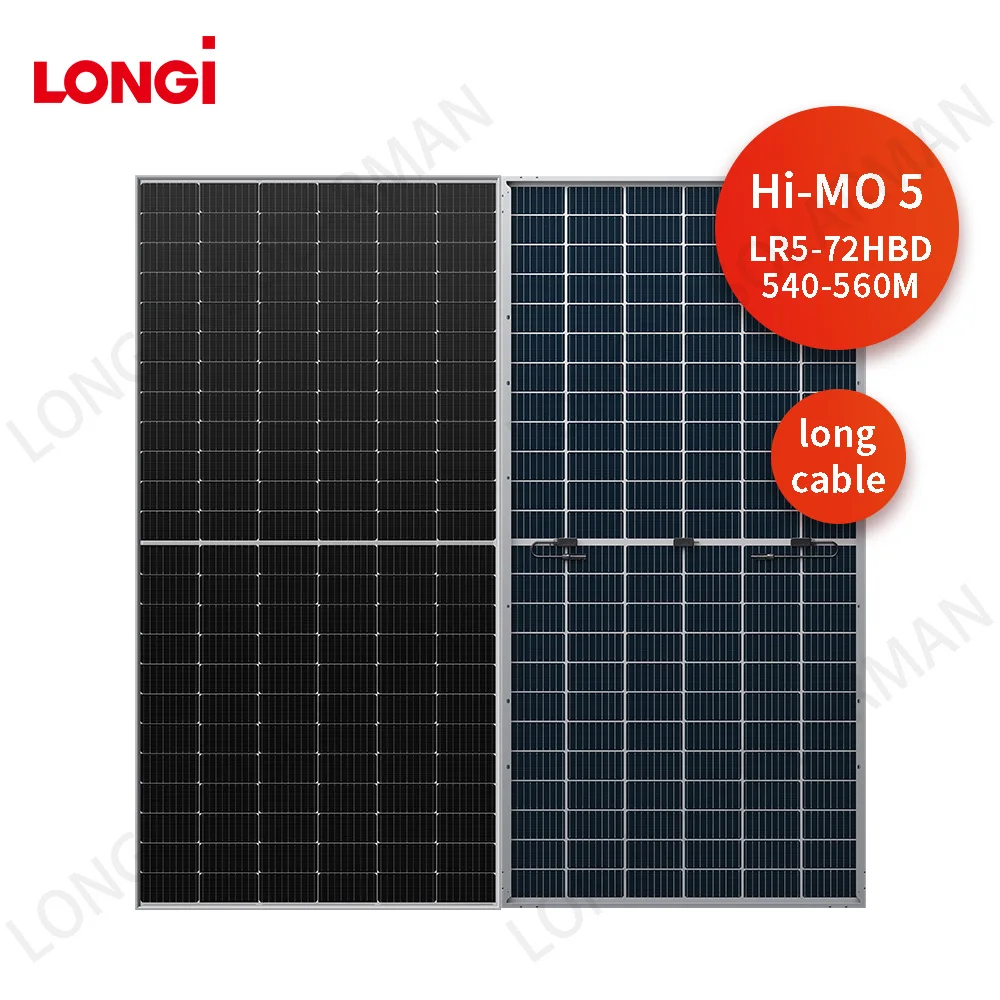

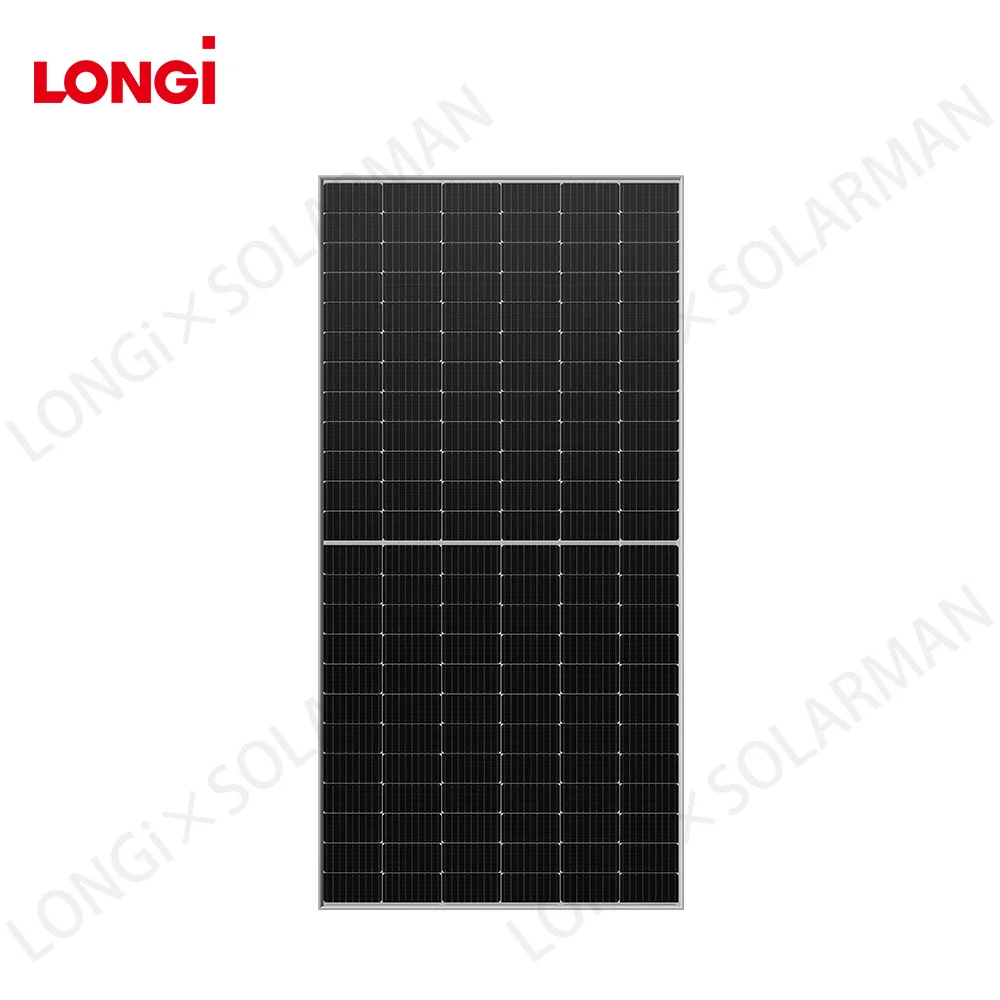

LONGi Hi-MO 5 LR5-72HBD 540~560M |
||||||||
Number of solar cells |
144（6×24） |
|||||||
Junction box |
Split junction box，IP68，3 diodes |
|||||||
Output cable |
4mm²，long cable，±1000mm/±1400mm |
|||||||
Dobule Glass |
Dual glass, 2.0+2.0mm heat strengthened glass |
|||||||
Weight |
31.8kg |
|||||||

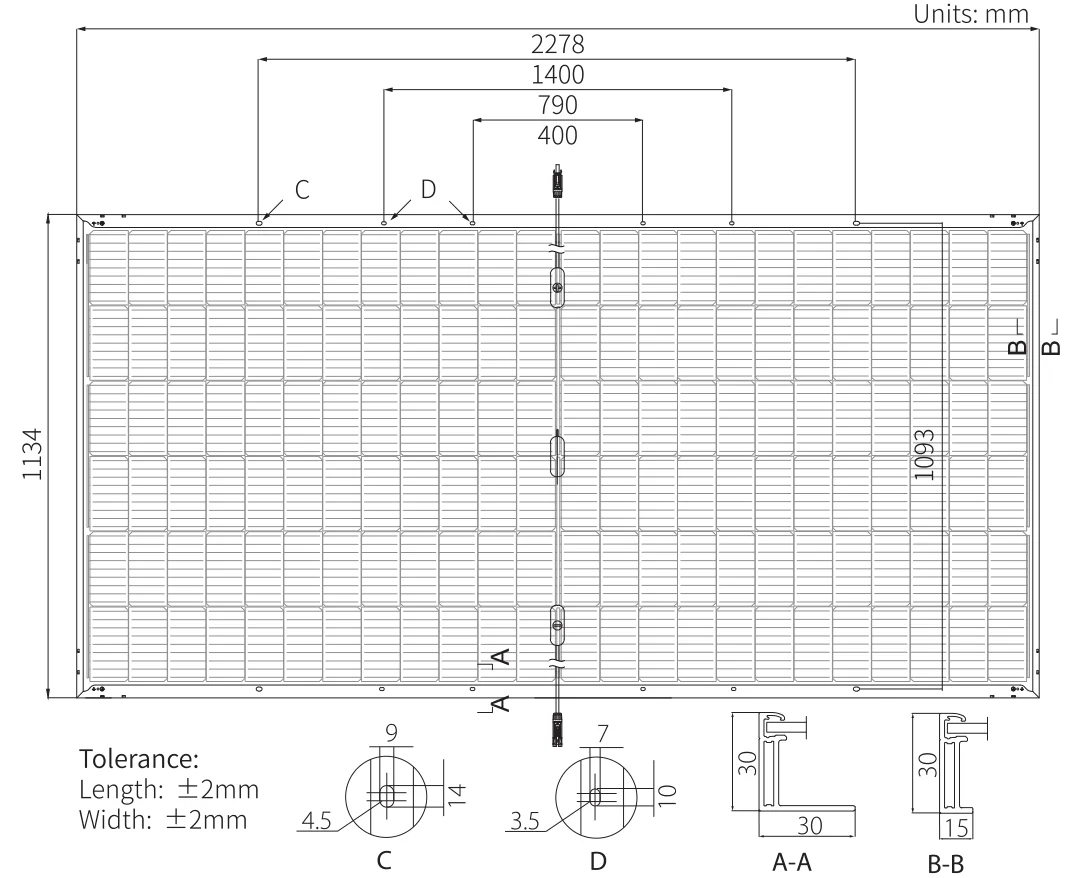

Size |
2278*1134*30mm |
|||||||
Packaging |
36pcs per pallet / 180pcs per 20‘GP / 720pcs per 40‘HC |
|||||||
