Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.

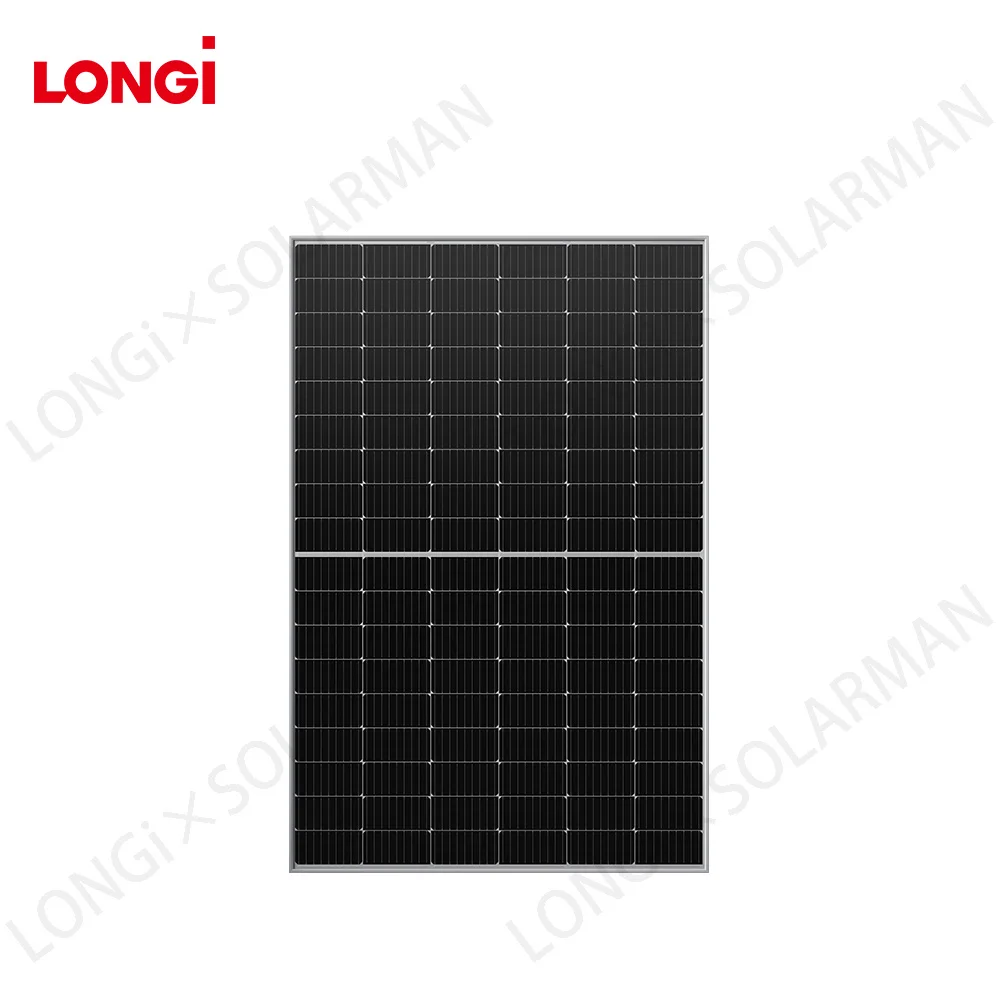

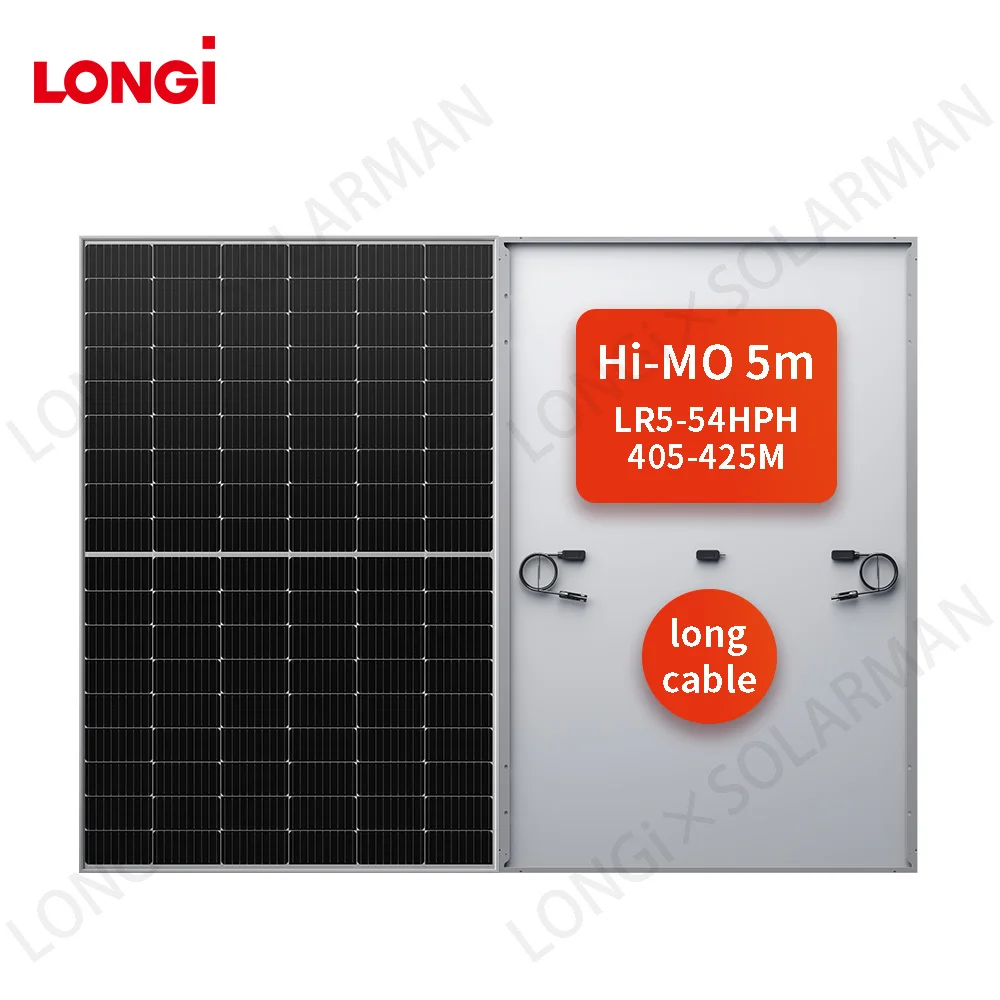

LONGi Hi-MO 5m LR5-54HPH 405-425M |
||||||||
Module model |
LR5-54HPH-
410M
|
LR5-54HPH-
415M
|
LR5-54HPH-
420M
|
LR5-54HPH-
425M
|
||||
Maximum power (Pmax/W) |
410 |
415 |
420 |
425 |
||||
Open circuit voltage (Voc/V) |
37.25 |
37.50 |
37.75 |
37.96 |
||||
Short circuit current (Isc/A) |
13.88 |
13.94 |
14.01 |
14.08 |
||||
Peak power voltage (Vmp/V) |
31.25 |
31.49 |
31.73 |
31.94 |
||||
Peak power current (Imp/A) |
13.12 |
13.18 |
13.24 |
13.31 |
||||
Module efficiency(%) |
21.0 |
21.3 |
21.5 |
21.8 |
||||
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
|||||||
Packing |
36pcs per pallet / 216pcs per 20'GP / 936pcs per 40'HC |
|||||||

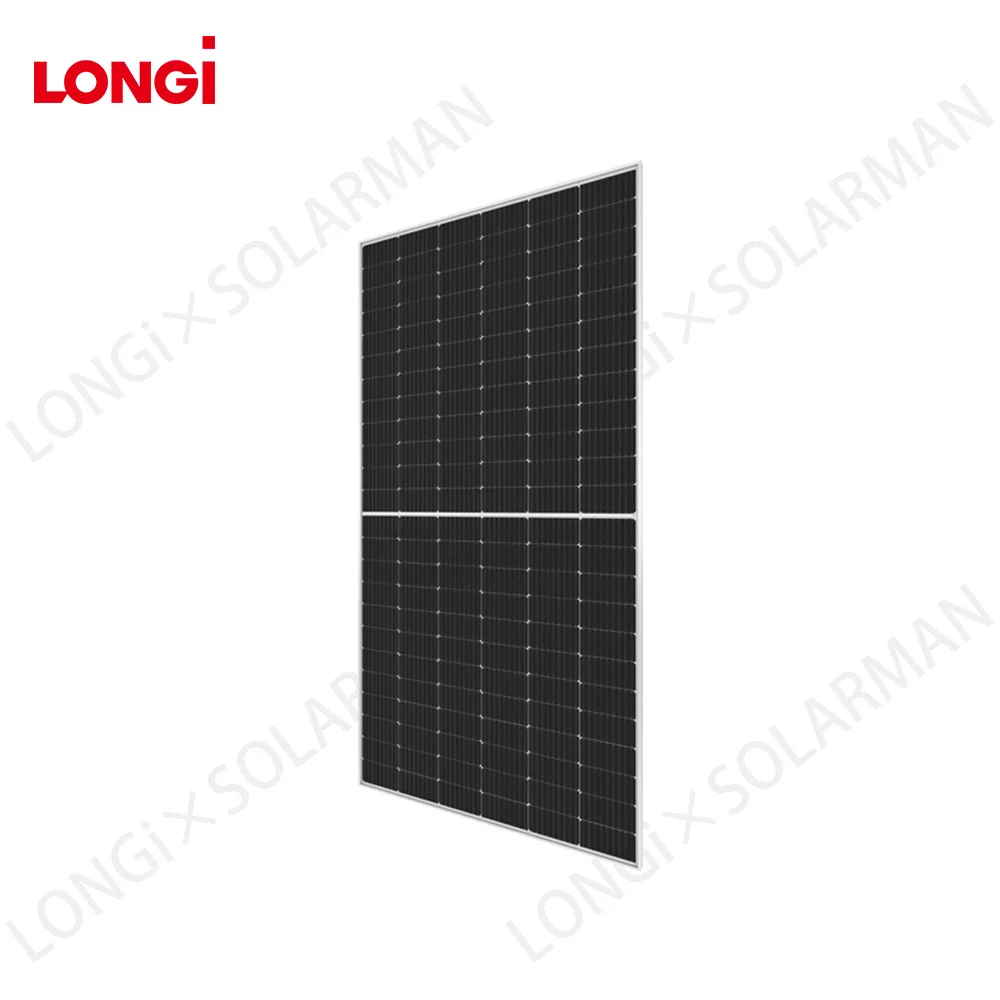

LONGi Hi-MO 6 Explorer LR5-54HTB 415-435M |
||||||||
Number of solar cells |
108（6×18） |
|||||||
Junction box |
Split junction box，IP68，3 diodes |
|||||||
Output cable |
4mm²，long cable，±1000mm/±1400mm |
|||||||
Single Glass |
3.2mm coated tempered glass |
|||||||
Weight |
20.8kg |
|||||||

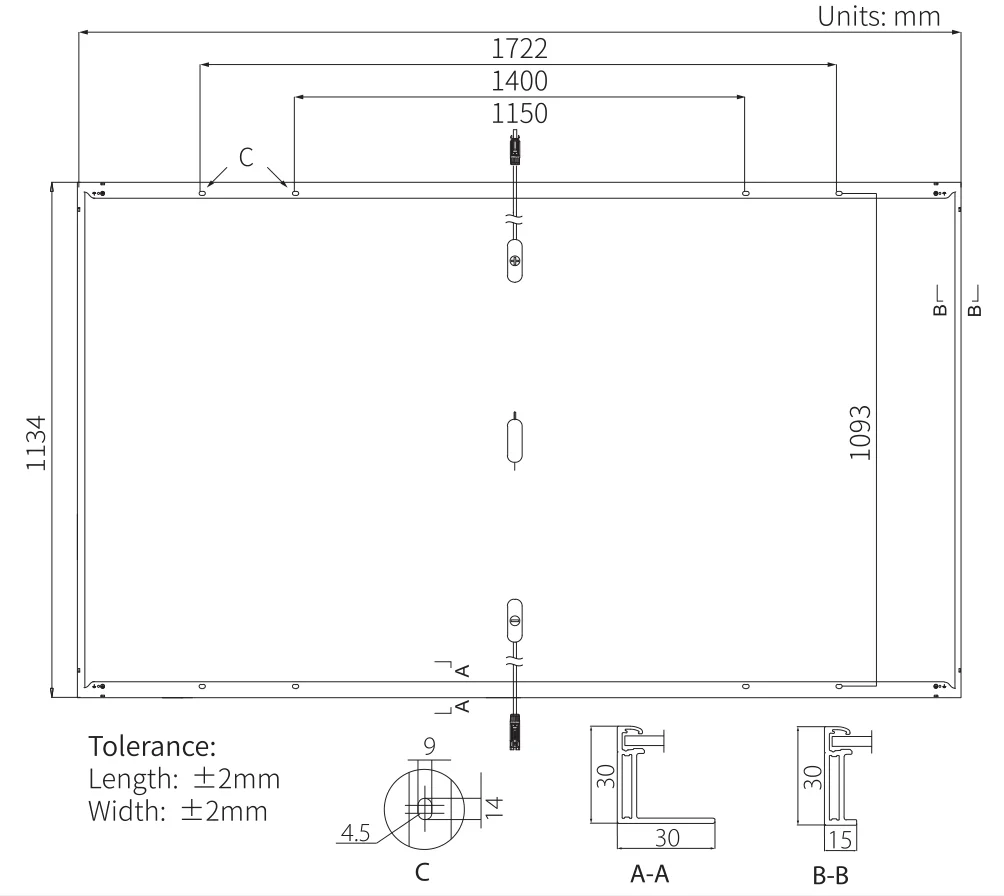

Size |
1722*1134*30mm |
|||||||
Packaging |
36pcs per pallet / 216pcs per 20‘GP / 936pcs per 40‘HC |
|||||||
