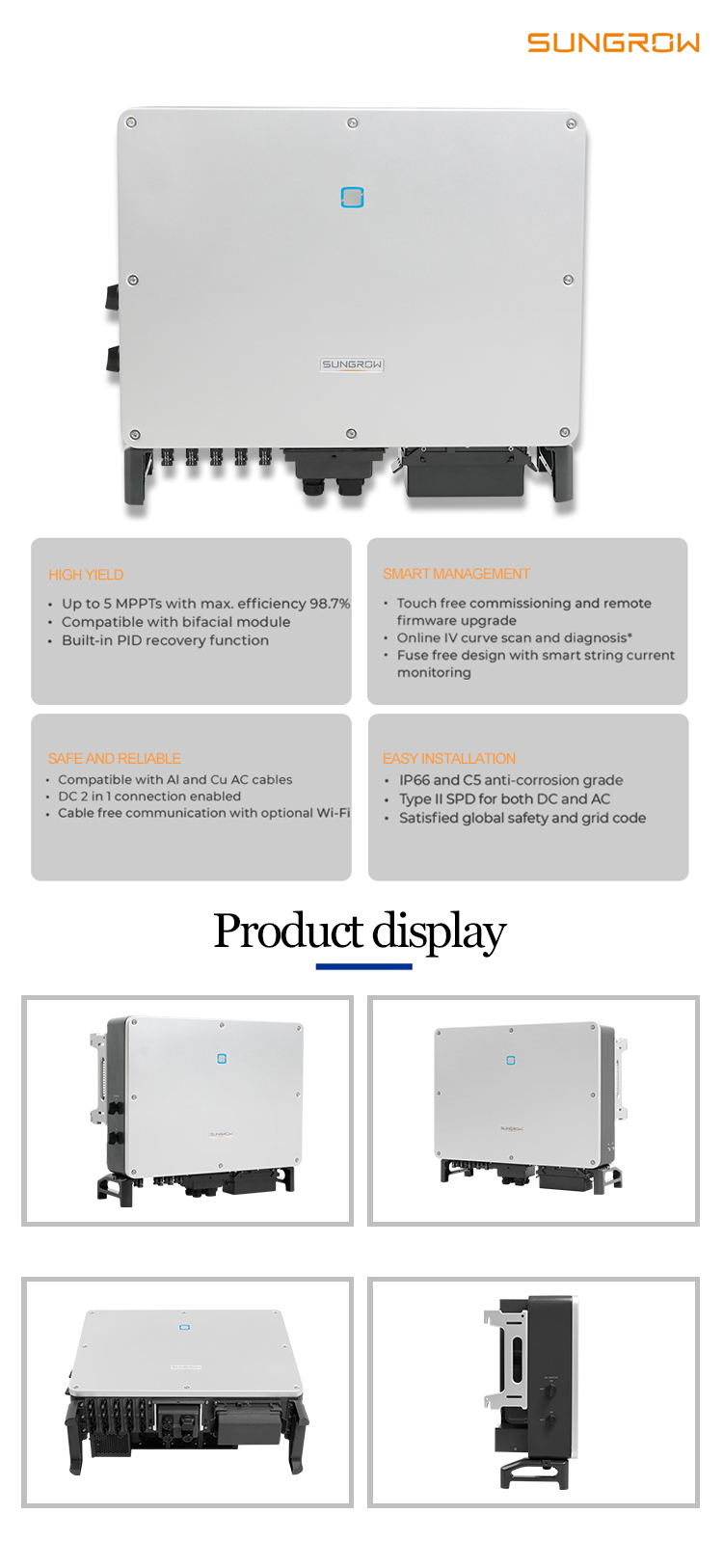

Model Name | SG33CX | SG40CX | SG50CX | |||
Input DC | ||||||
Max. input voltage | 1100V | |||||
Start-up voltage | 200V / 250V | |||||
Rated input voltage | 585V | |||||
MPPT voltage range | 200-1000V | |||||
No. of independent MPP inputs | 3 | 4 | 5 | |||
Max. current for input connector | 78A | 104A | 130A | |||
Max. short circuit current | 120A | 160A | 200A | |||
Output DC | ||||||
Rated out power | 33KW | 40KW | 50KW | |||
Max.apparent output power | 36.3KW | 44KW | 55KW | |||
Max. AC output current | 55.2A | 66.9A | 83.6A | |||
Rated grid voltage | 3/N/PE, 230/400V | |||||
AC voltage range | 312-528V | |||||
Rated grid frequency | 50/60Hz | |||||
THDi | <3%> | |||||
DC current injection | <0.5%(of nominal="" current=""> | |||||
Power Factor | >99%(0.8 leading-0.8 lagging) | |||||
Efficiency | ||||||
Max. efficiency | 98.6% | 98.6% | 98.7% | |||
Max. European efficiency | 98.3% | 98.3% | 98.4% | |||
Protection | ||||||
PV reverse connection protection | Yes | |||||
AC short circuit protection | Yes | |||||
Leakage current protection | Yes | |||||
Grid monitoring | Yes | |||||
PV string current monitoring | Yes | |||||
DC switch | Yes | |||||
Overvoltage protection | DC Type II/AC Type II | |||||
General Data | ||||||
Dimensions (W*H*D) | 702*595*310mm | 782*645*310mm | ||||
Weight | 50kg | 58kg | 62kg | |||
Topology | Transformer less | |||||
Self-consumption | <2w> | |||||
Operating ambient temperature range | -30 ~ +60°C | |||||
Relative humidity | 0-100% | |||||
Ingress protection | IP66 | |||||
Max. operation altitude | 4000m | |||||
Grid connection standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, UNE 206006, UNE 206007-1, IEC 61727 | |||||
Safety / EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4 | |||||

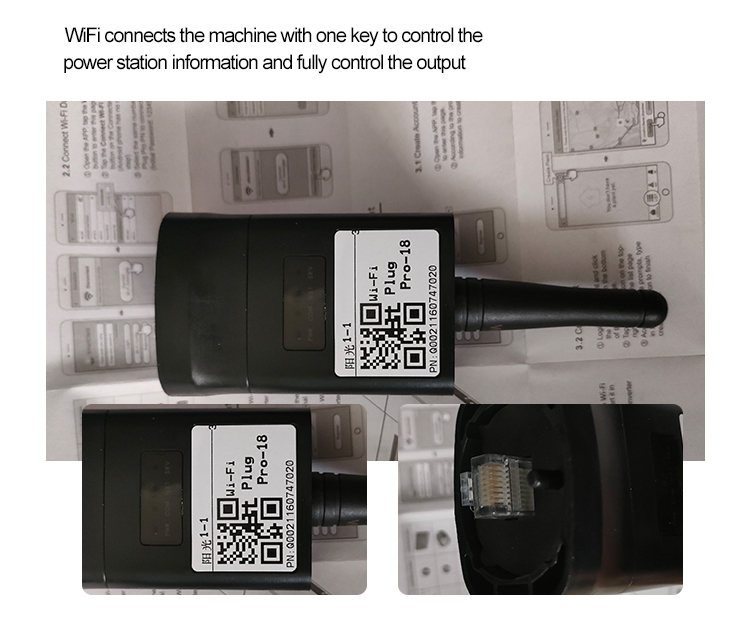

Communication | WIFI/ Ethernet (optional) | |||||

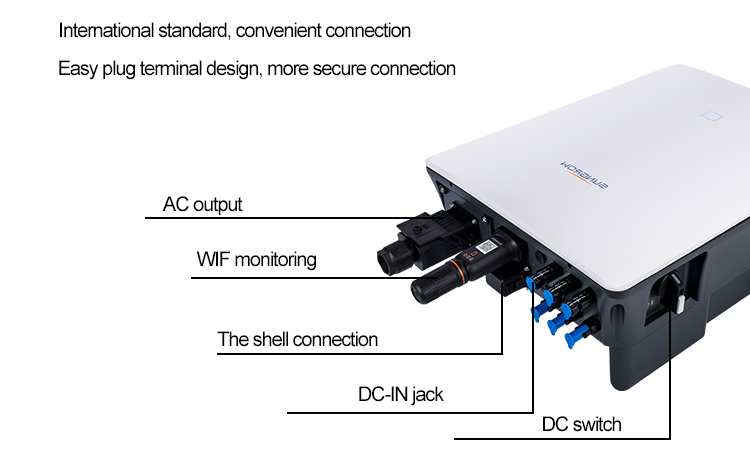

DC connection | MC4 (Max. 6 mm²) | |||||
AC connection | Plug and play connector (max. 6 mm² ) | |||||
Display | LED | |||||
Compliance | Active & reactive power control, power ramp rate control | |||||
